Shop

Home Audio & Video Commercial TV & Displays LG 22SM3G-B 22″ Digital Signage Full HD IPS Smart Display With WEB O/S
Sale!

LG 22SM3G-B 22″ Digital Signage Full HD IPS Smart Display With WEB O/S

$689.00 inc GST

Out of stock

Email Me when stock available

Add to Wishlist
Add to Wishlist
SKU: 22SM3G-B Category:
LG

Description



LG 22SM3G-B 22″ Digital Signage Full HD IPS Smart Display With WEB O/S



3 year manufacturer warranty

Australian Stock

Brand New



webOS Small-Sized Display



Key Features:

  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm

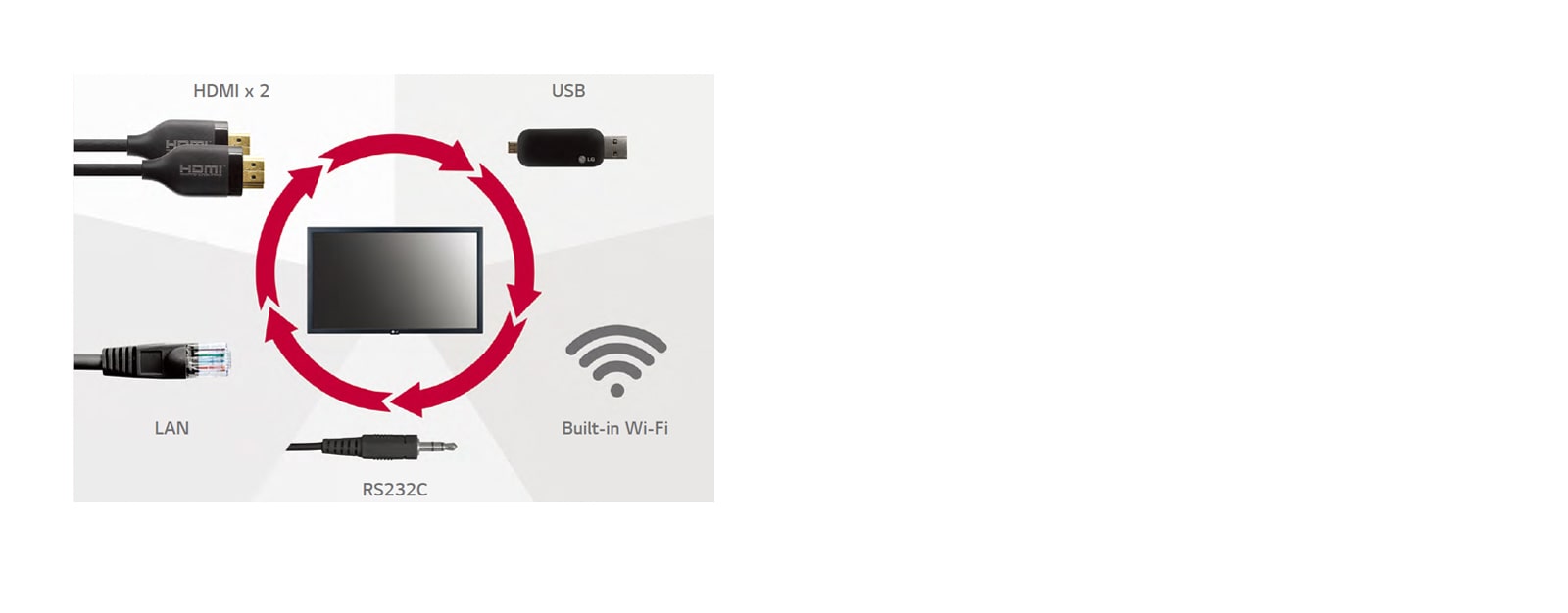

  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio

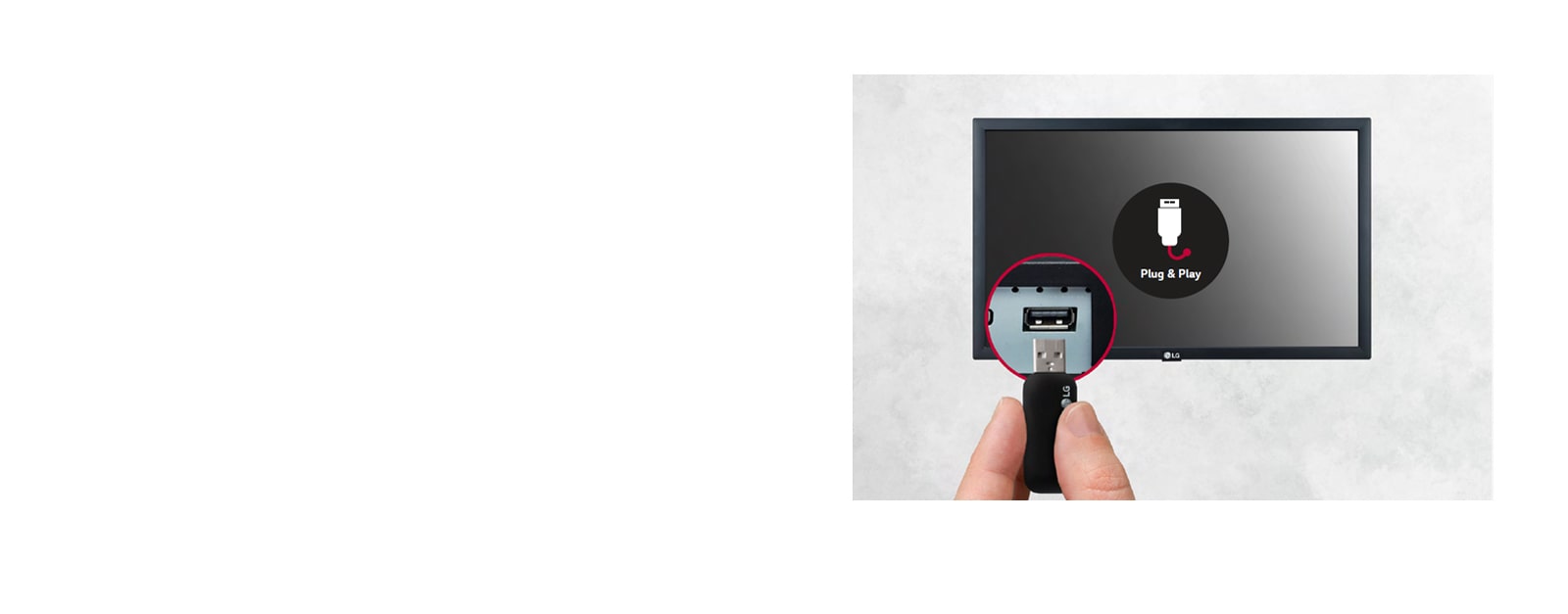

  • USB Plug & Play, Built-in Wi-Fi



specifications

PANEL

  • Screen Size
    21.5″
    Panel Technology
    IPS
  • Aspect Ratio
    16:9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Refresh Rate
    60 Hz
    Brightness (Typ., cd/m²)
    250
  • Contrast Ratio
    1,000:1
    Viewing Angle (H x V)
    178 x 178
  • Response Time
    14ms (G to G)
    Surface Treatment (Haze)
    25 %
  • Life Time (Min.)
    30,000 Hrs
    Operation Hours (Hours / Day)
    16 / 7
  • Portrait / Landscape
    Yes / Yes

CONNECTIVITY

  • Input
    HDMI (2, HDCP2.2), USB 2.0 Type A, Audio In
    Output
  • External Control
    RS232C In (Phone-jack), RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    16.3 mm (Even Bezel)
  • Weight (Head)
    3.34 kg
    Packed Weight
    4.74 kg
  • Monitor Dimensions (W × H × D)
    510.3 x 302.1 x 53.8 mm
    Carton Dimensions (W × H × D)
    565.0 x 357.0 x 103.0 mm
  • Handle
    No
    VESA™ Standard Mount Interface
    100 x 100 mm

FEATURE

  • Key Feature
    Internal Memory 8GB, Built-in Wi-Fi, Temperature Sensor, Local Key Operation, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), PIP, PBP (2), Screen Share, Play via URL, Setting Data Cloning, SNMP, ISM (Image Sticking Minimization) Method, Control Manager, Crestron Connected® (Network based control), Smart Energy Saving, PM Mode, Wake on LAN,Beacon, HDMI-CEC (Compatibility may differ by equipment), SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    30 W / 33 W
    Power Consumption (Smart Energy Saving)
    15 W ± 5 %

SOUND

  • Speaker
    Yes (1 W x 2 ea)

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE
  • ErP
    Yes (EU Only)
    ePEAT (US Only)
    No

OPS COMPATIBILITY

  • OPS Type Compatible
    No
    OPS Power Built In
    No

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/ Control+
  • Signage365Care
    Yes (The availability of the “Signage365Care” service differs by region.)

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Phone to RS232C Gender, External IR, IR Sheet
